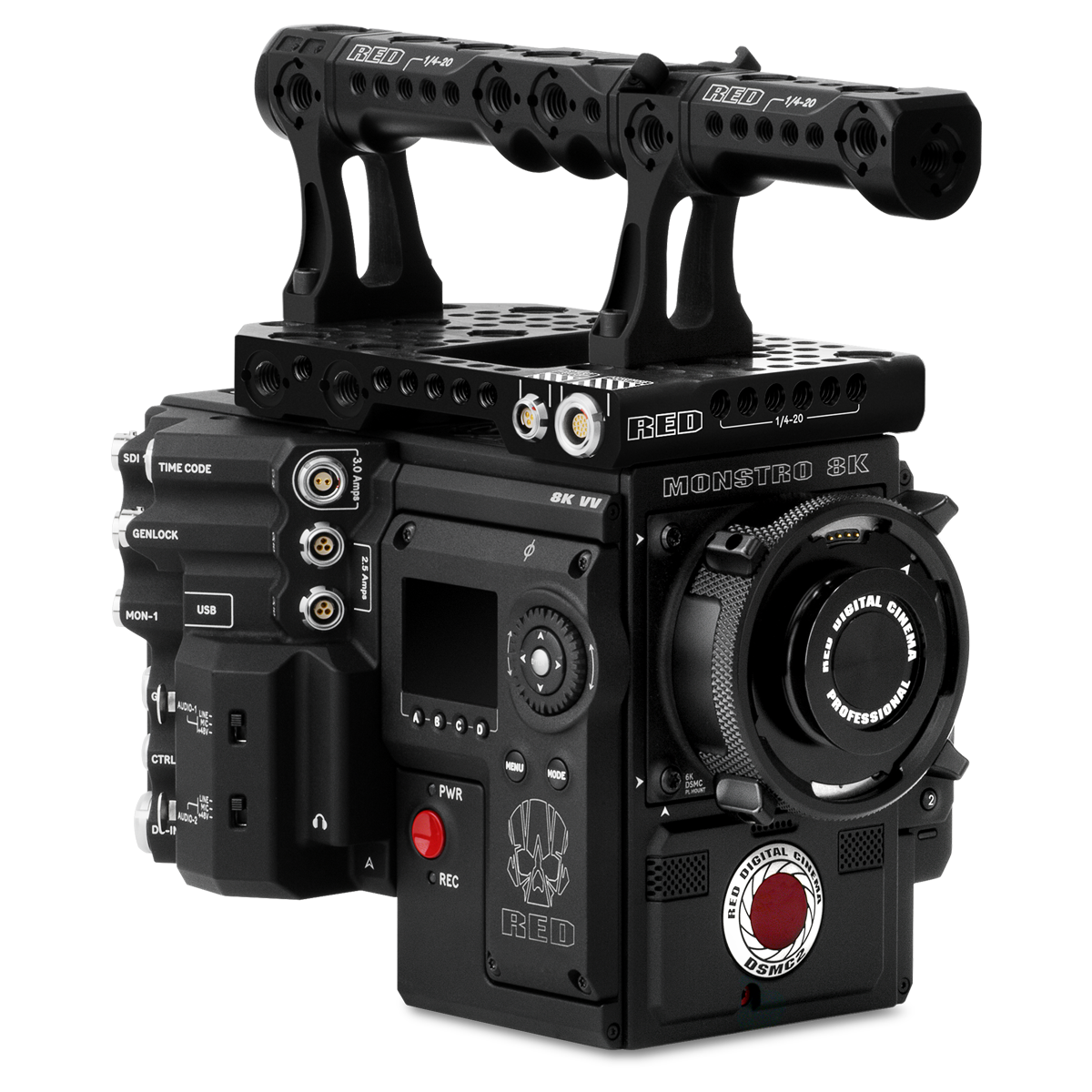

Announcing the RED DSMC2 PRODUCTION MODULE

Jarred Land

Jarred Land

Fire Chief
Staff member
Joined
Dec 27, 2006
Messages
10,644
Reaction score
33
Points
10


https://www.red.com/DSMC2-Production-Module-V-Lock

$4750


CONNECTORS
2x 3G-SDI outputs (75 Ω BNC), 60 Hz max frame rate
Monitor output (75 Ω BNC), 60 Hz max frame rate
2x 24V Aux Power / Remote Start/Stop Outputs (3-Pin Fischer), 2.5A Shared
Aux Power Output (2-Pin 0B LEMO), 3.0A
Aux Power Output (2-Pin P-Tap), 3.0A
DC IN (6-Pin 1B LEMO socket)
2x Balanced Audio inputs (3-Pin, full size XLR female)
Stereo Headphone output (3.5 mm jack)
Timecode input/output (5-Pin 0B LEMO)
Genlock input (75 Ω BNC)
Gigabit Ethernet input/output (9-Pin 0B LEMO)
CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00 LEMO)
USB Power output (Type A socket), 1.5A

AUTO BOOT ON POWER
2-position slider switch

AUDIO
2 channel, uncompressed, 24-bit, 48 KHz
Input Formats: Balanced Line, Balanced Mic (w/o Phantom Power), Balanced Mic (w/ 48 V Phantom Power)

Shipping mid-January. AB version in the works for later in 2019.

Also available in a bundle with a new top handle and top plate.

https://www.red.com/DSMC2-Production-Kit-V-Lock

Last edited by a moderator:
Is the monitor SDI a whole new feed, or does it borrow from the HDMI?

I'd want to be able to run the EVF and LCD on the body, and still get two further independent outputs at the back.

Brent@RED said:
Because I fatfingered the price when I sent it to Jarred, my bad.... True price is the $4750.
Click to expand...

Ha ha, You owe me one Brent! You know Jarrad always outweighs whatever the website says! ;)

Oh, and it's probably too late with wherever you're at with production, but it sure would be awesome if the unit has just even a few strategically placed 1/4-20 taps on the top for adding accessories or top plates. Is there must be a reason it doesn't have them?

I suppose that's where we'll all be putting a velcro landing strip otherwise...

John Marchant said:
Is the monitor SDI a whole new feed, or does it borrow from the HDMI?

I'd want to be able to run the EVF and LCD on the body, and still get two further independent outputs at the back.
Click to expand...

The MON-1 port provides an additional monitor feed that is separate from the SDI-1 and SDI-2 cloned feeds. The secondary LCD/EVF port and an HDMI/MON-1 port cannot be used at the same time.


Spencer Weaver said:
Oh, and it's probably too late with wherever you're at with production, but it sure would be awesome if the unit has just even a few strategically placed 1/4-20 taps on the top for adding accessories or top plates. Is there must be a reason it doesn't have them?

I suppose that's where we'll all be putting a velcro landing strip otherwise...
Click to expand...

Planned. If you force a hard mating between a brain and a module, the tolerances can stack up where it messes with the connection between the two. You should only ever connect a module to a brain via the screws through the module, not a bridge across the top.

We took away that temptation : )

  • Thread starter
  • Admin
  • #8
Spencer Weaver said:
Oh, and it's probably too late with wherever you're at with production, but it sure would be awesome if the unit has just even a few strategically placed 1/4-20 taps on the top for adding accessories or top plates. Is there must be a reason it doesn't have them?

I suppose that's where we'll all be putting a velcro landing strip otherwise...
Click to expand...

Because adding 1/4-20s to the top of the module can pull apart the module connector from the brain if you put too much weight on it.

Brent@RED said:
The MON-1 port provides an additional monitor feed that is separate from the SDI-1 and SDI-2 cloned feeds. The secondary LCD/EVF port and an HDMI/MON-1 port cannot be used at the same time.




Planned. If you force a hard mating between a brain and a module, the tolerances can stack up where it messes with the connection between the two. You should only ever connect a module to a brain via the screws through the module, not a bridge across the top.

We took away that temptation : )
Click to expand...

Copy that. Interesting.

Jarred Land said:
Because adding 1/4-20s to the top of the module can pull apart the module connector from the brain if you put too much weight on it.
Click to expand...

Yeah, so by the time you hang a ~140wh size battery off the back (plus have a teredek sandwiched in there) I suppose you can't put much more weight on it. I would have thought adding riggid support on the top (or bottom) would help with this... but I guess Brent says it messes with the electrical connections. hmm.

So, if a manufacture made a top plate that was longer than the brain it would still work... but it would have to cantalever over the open space of the module and not be screwed into the module itself. Is that your thought? Because that seems totally viable to me.

Spencer Weaver said:
Yeah, so by the time you hang a ~140wh size battery off the back (plus have a teredek sandwiched in there) I suppose you can't put much more weight on it. I would have thought adding riggid support on the top (or bottom) would help with this... but I guess Brent says it messes with the electrical connections. hmm.

So, if a manufacture made a top plate that was longer than the brain it would still work... but it would have to cantalever over the open space of the module and not be screwed into the module itself. Is that your thought? Because that seems totally viable to me.
Click to expand...

Yes but it would have to be beefed up in thickness so not to band and transfer any weight under on to the actual Module.

Spencer Weaver said:
Yeah, so by the time you hang a ~140wh size battery off the back (plus have a teredek sandwiched in there) I suppose you can't put much more weight on it. I would have thought adding riggid support on the top (or bottom) would help with this... but I guess Brent says it messes with the electrical connections. hmm.

So, if a manufacture made a top plate that was longer than the brain it would still work... but it would have to cantalever over the open space of the module and not be screwed into the module itself. Is that your thought? Because that seems totally viable to me.
Click to expand...

You are looking for our new Production Top Plate then: https://www.red.com/DSMC2-Production-Kit-V-Lock

Could you post a pic with the module on a camera? Maybe with someone holding that setup in their hand?

Basically anything I can post on the Alexa facebook groups to make them jealous.
