PHFX | tools

[Luke Marcus Rosen]

Phil! After a bit of learning, I've finally got premiere to play my footage. Thank you kind sir!!



[Taylor Magyar]

Thank you Phil- used your Premiere presets on fishbowl (5k late 2015 iMac) and everything is working great. Just changed a 6k anamorphic project over as well. THANK YOU! THANK YOU! THANK YOU!



[Phil Holland]

I've just added one more useful thing to PHFX | tools. formatCompare will compare to Format Sizes from digital cinema cameras as well as film and also provide a Crop Factor Datasheet. This is particularly useful if you are working on multi-camera productions with different formats or if you are RED shooter working with different formats or sensor technologies. This currently supports RED Dragon, Helium, and Mysterium-X sensor tech as well. I'll be adding and updating this over time as new cameras are released.

Enjoy.

Link to PHFX | tools in my signature.



[Shukhrat K.T.]

Cool, wish you make an Iphone apps with all tools you made



[DJ Kast]

Cool, wish you make an Iphone apps with all tools you made

Ditto! That would be a powerful tool to have in app form!



[Phil Holland]

Updated REDCamAssist, lensData, and formatCompare to with Helium S35's specs.

For the film minded, take special note of 7K HD with Helium as it's essentially the same format size as Kodak Super 35mm 3-Perf Motion Picture Film:

RED Helium 7K HD & Kodak Film Super 35mm 3-Perf Format Comparison



[Phil Holland]

Bad weather on location, but it's a good time to launch another PHFX | tool. REDFormatKey. This tools is a datasheet generator and will produce information for every Format and Resolution for a given RED camera model. Additionally it shows maximum frame rate, image plane dimensions, image circle, megapixel count, and relative crop factors for Super 35mm and Full Frame 35mm formats.

This was inspired by stumbling upon a format key datasheet I made back in 2012 at a production company while filming out of the country this week. It's good to stay up to date.

Link is in my signature.

Enjoy.



[Sergio Perez]

Thanks Phil, these are excellent. This Format key also completely cleared my questions about the Helium sensor VS Red's other sensors in crop factor.



[PatrickFaith]

On the format key, thanks for putting in sensor mm, it really helps on vfx camera solves.



[Gaston Fazio]

You are awesome.



[Phil Holland]

Big update this evening.

PHFX | tools now supports both RED Weapon 8K S35 and Epic-W featuring the Helium sensor technology.

There are subtle differences between the resolutions and formats when compared to Dragon. 6K FF for instance. Dive in and take a look.

A couple more updates coming later this week as well.



[Phil Holland]

I'm gonna be busy updating things this week.

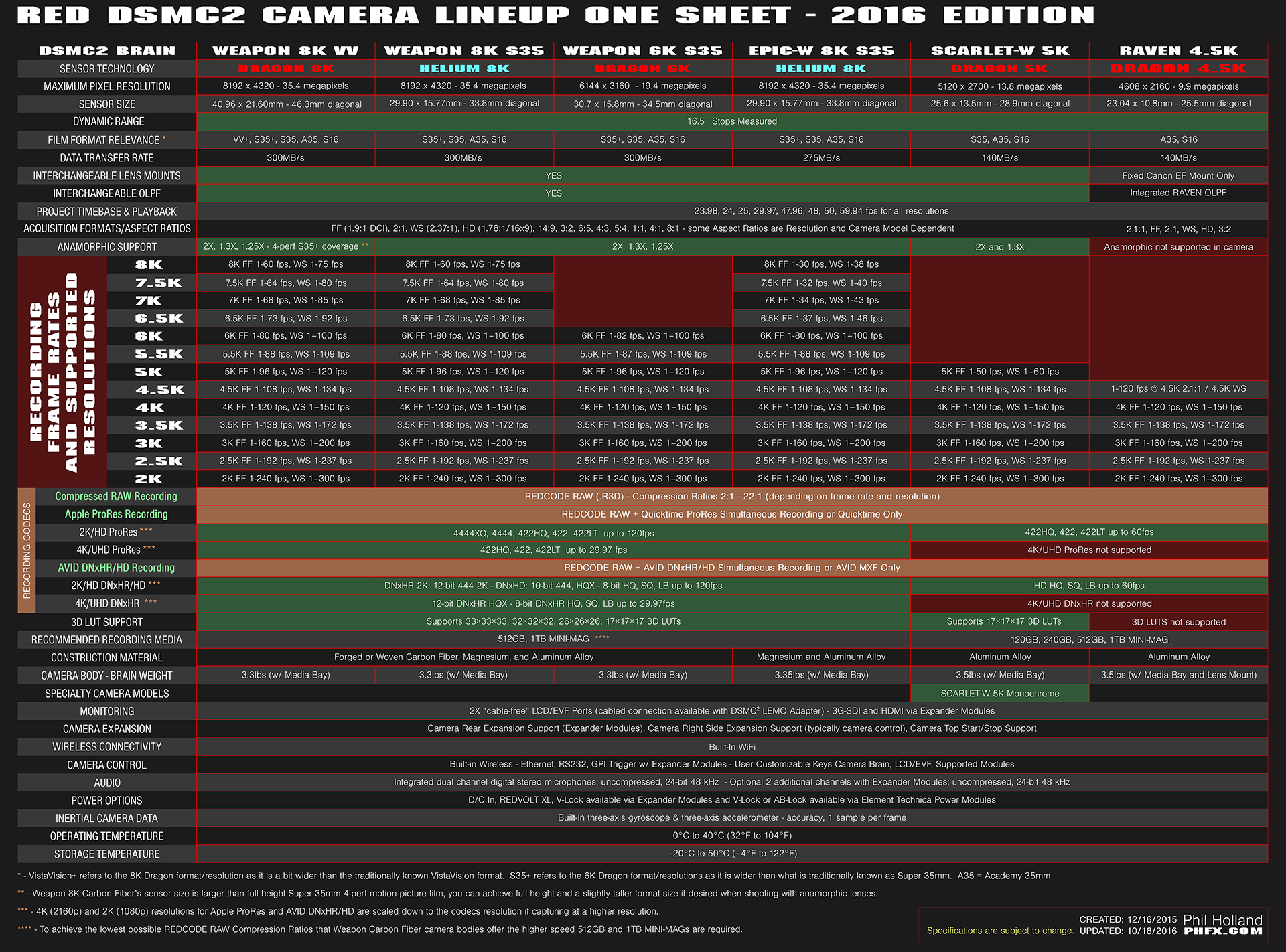

So here's a new RED DSMC2 Camera Lineup One Sheet - 2016 Edition.



Click it for a bigger version.

This is a good way to take a look at all RED's current 2016 camera offerings at a glance and likely good reference just to have handy.



[Phil Holland]

Well today's the big day. Adobe Premiere Pro CC 2017 has been released.

Important things:
- Helium Support
- REDWideGamutRGB and Log3G10 Support

Plus of course new features.

RED Weapon 8K VV, Weapon 8K S35, and Epic-W 8K S35 all have had slight changes to a few common formats/resolutions. For instance 6K FF is now 6144x3240 compared to say Epic Dragon 6K FF, which is 6144x3160.

Because of these subtle changes I've created Sequence Presets for 8K RED camera models as well as 6K and under cameras.

They can be found right here:
http://phfx.com/tools/REDsequencePresets/



[Matthew Quinn]

Thank You Phil!! We are so fkn lucky to have guys like you looking out for us



[Phil Holland]

Thank You Phil!! We are so fkn lucky to have guys like you looking out for us

Thanks Matthew. I am one of you! I just got my Helium a couple days ago!



[Matthew Quinn]

so dope grats!



[Elsie N]

Phil, noticed no 47.95 or 48 time base.

Oversight or intended?



[Matthew Quinn]

Need to change your signature Phil



[Phil Holland]

RED DSMC2 Neutral Density Filtration Notes

Something I get asked about a whollllllle lot. Added a graphic of notes to PHFX | tools. Stuff I've tested and/or use on my shoots.



Enjoy.



[Phil Holland]

2017.07.04 - lensData update: Zeiss CP.3, Leica Thalia, Cooke, Tokina, Sigma Cine, and more

It's a holiday and I shouldn't be working, BUT, it's been a busy couple months of new cinema lenses. Zeiss, Leica, Cooke, Tokina, Sigma, etc... Covering all sorts of formats. I've tested nearly everything and had them on camera, so if you are curious if they cover your RED camera or whatever camera, it's here. Big thank you to all of the manufacturers and bigger thanks for making glass that covers larger formats!
