Research Help please

[Jay A. Kelley]

I need the following measurements in pixels & millimeters
These are for sensors in video cameras

1/3" chip (Video sensor)
2/3" chip (Video sensor)
16mm Film
2k pixel size and effective sensor size when shooting RED
4k RED Sensor

Also please include the 35mm motion picture size that's comparable to RED's 4k.

I KNOW this info is scattered throughout the forum, but I need it in one place at one time.

No guessing, or you will make me, and YOU look pretty stupid later on.



First one to answer get's a gift. (I'll tell you later) :hand:

Jay


:closedeyes:



[Erik Bien]

Sorry to say I don't remember who first posted this either, but here's a handy-dandy chart that covers it.



[David Birdy]

Jay,

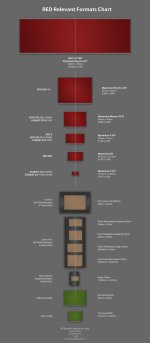

Here is a chart that may be helpful...I did not create the chart so you may want to double check the information!

Credit goes to Brook Willard

Click it a few times to enlarge!

Dave



[Alexander Christ]

RED ONE in 16:9 is:

4K: 4096 x 2304, 22.12 x 12.44mm
4K HD: 3840 x 2160, 20.74 x 11.66mm
3K: 3072 x 1728, 16.59 x 9.33mm
2K: 2048 x 1152, 11.06 x 6.22mm

Video/Inch-based sensor formats are not standardized: http://en.wikipedia.org/wiki/Image_sensor_format

16mm film: http://en.wikipedia.org/wiki/16mm_film

35mm film: http://en.wikipedia.org/wiki/35mm_film
