Lemo Time code Pin configuration

[r buncher]

I want to build some cables to input Time code to the Red from a 744t. I believe that I need to wire the ground pin and pin 2 on the Lemo connector at the Red.
On the 744t end I would wire the ground pin and pin 5.

This would be consistent with the SD cables and I think is standard.

Is this correct?

I did try to download the Red manual to check the pin layout but for some reason had no luck with the download.

Thanks,
Bob



[Andrew J.]

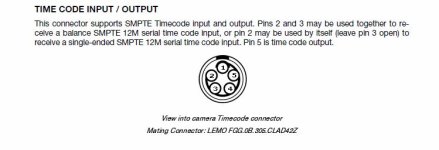

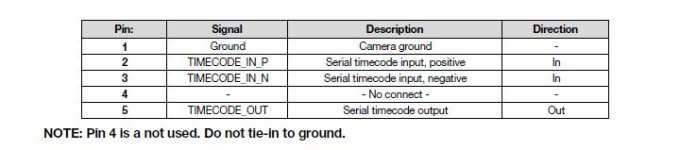

Check both attachments.



[Marc Wielage]

Be warned that Lemo connectors are a total pain to solder. I gave up and just use Wilcox for most of my cables:

Wilcox Communications
4545 Chermak Street
Burbank, CA 91505
(818) 557-3377

Very nice people. On the East coast, Trew Audio is fantastic:

Trew Audio, Inc.
http://www.trewaudio.com/
(800) 241-8994
(615) 256-3542



[r buncher]

Andrew, Thanks. So the pins are standard.

Marc, I'm ok with the Lemos if I am only connecting a couple pins. More than that and I would probably have someone else make the cable. It's hard enough to see the pins let alone solder them. But thanks for the warning.

Bob
