HLG HDR in DaVinci Resolve

[Jon Pais]

I’ve been mastering Rec.2020 ST2084 of Red Komodo footage in Resolve on my Mac for years but can’t seem to get HLG HDR to work. My exports are a lot brighter than what’s seen in Resolve’s viewer. I’ve tried both RCM and REDCINE X CST LUTs to no avail. Help please!



[rand thompson]

Hey Jon,

First , let me just say that you would probably know more about delivering HDR content from a Mac than I ever will, But I will attempt to try to help you. Hopefully someone whom is also Delivering HLG HDR Content from a Mac will chime in as well.

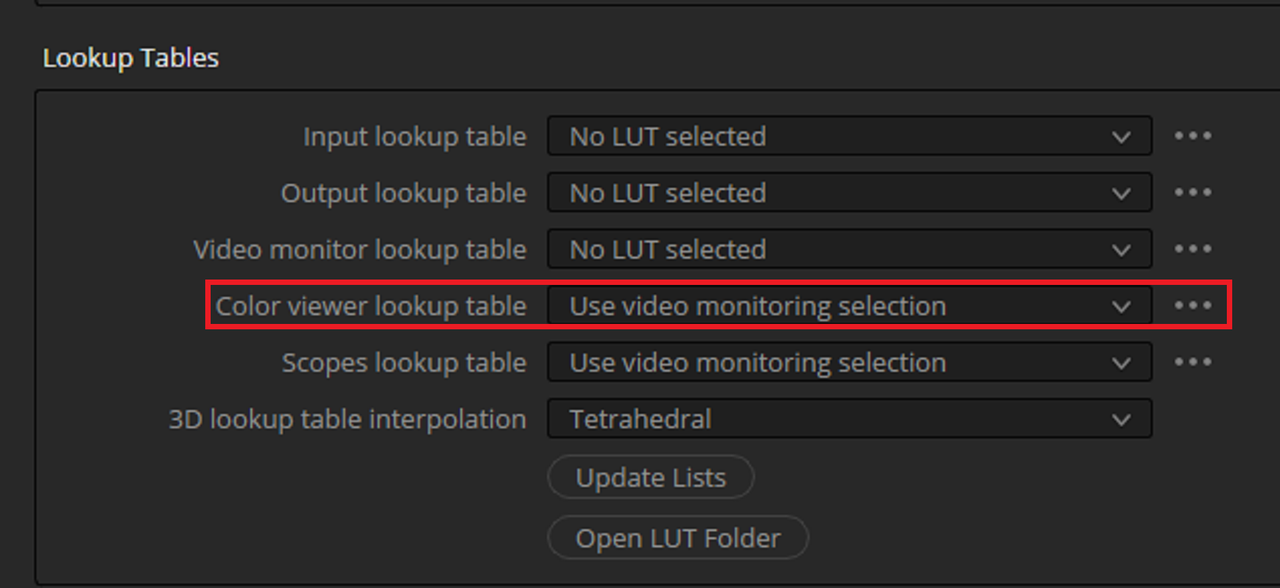

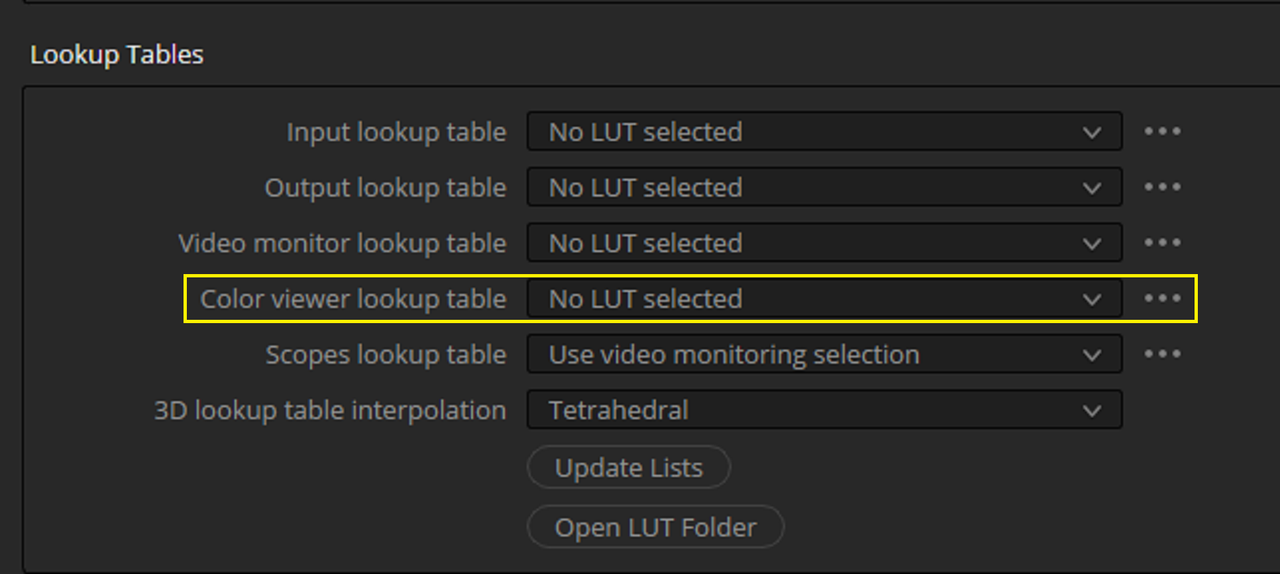

1) In the "Project settings" in the "COLOR MANAGEMENT" tab then under "LOOKUP TABLE" and "COLOR VIEWER LOOKUP TABLE" what setting do you have? If you haven't already change it from "USE VIDEO MONITORING SELECTION" to "NO LUT SELECTED". This way no Lut is affecting what should be a clean feed or something like that.

2) What are your Color Management settings? How are you grading the images?



[Jon Pais]

Hey Jon,

First , let me just say that you would probably know more about delivering HDR content from a Mac than I ever will, But I will attempt to try to help you. Hopefully someone whom is also Delivering HLG HDR Content from a Mac will chime in as well.

1) In the "Project settings" in the "COLOR MANAGEMENT" tab then under "LOOKUP TABLE" and "COLOR VIEWER LOOKUP TABLE" what setting do you have? If you haven't already change it from "USE VIDEO MONITORING SELECTION" to "NO LUT SELECTED". This way no Lut is affecting what should be a clean feed or something like that.

2) What are your Color Management settings? How are you grading the images?

Thanks Rand, I just tried that. No luck. I've tried RCM, node-based, you name it! These were my most recent settings on the color management page. I used a CST from REDCINE X, REDWideGamutRGB/Log3G10 to Rec.2020 HLG HDR for the node-based color mgmt one.



[rand thompson]

Jon give me a while to try to figure out some settings both Color Managed and Node based that we can try that may help and I will get back to you



[rand thompson]

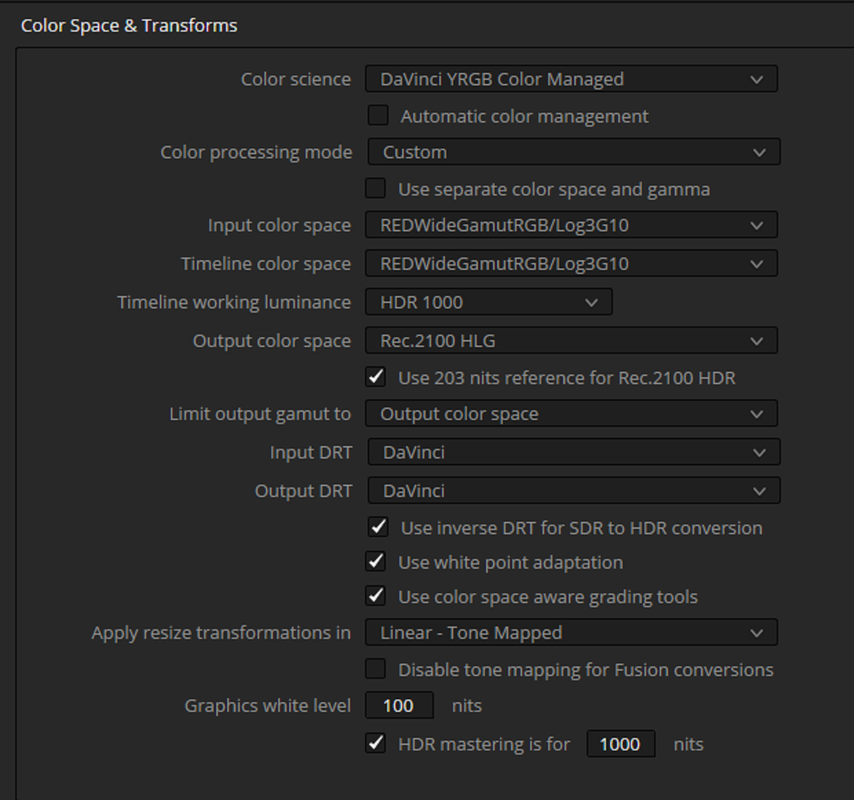

Jon here first is the settings that I would try Color Managed first. I will try to figure out A Node Based also and post it.



[rand thompson]

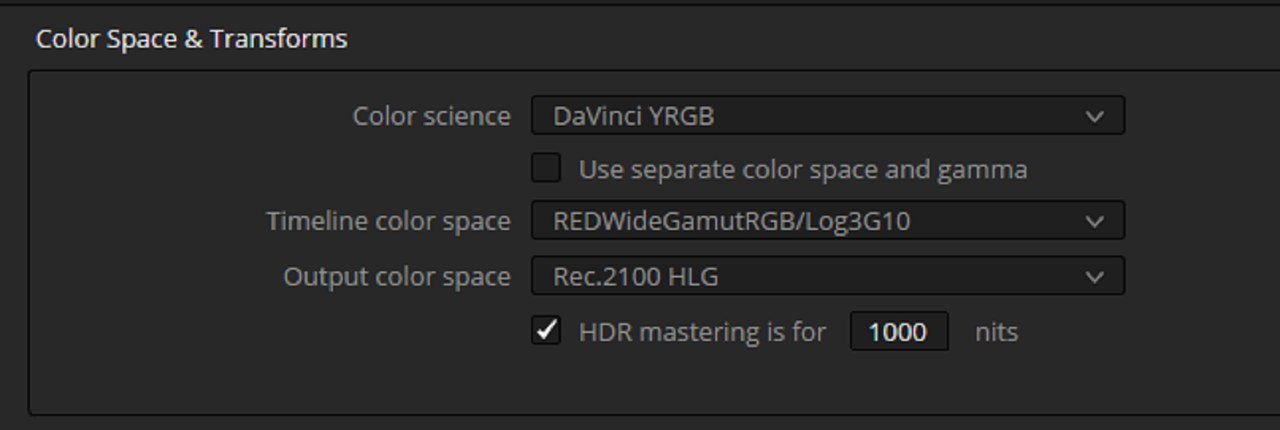

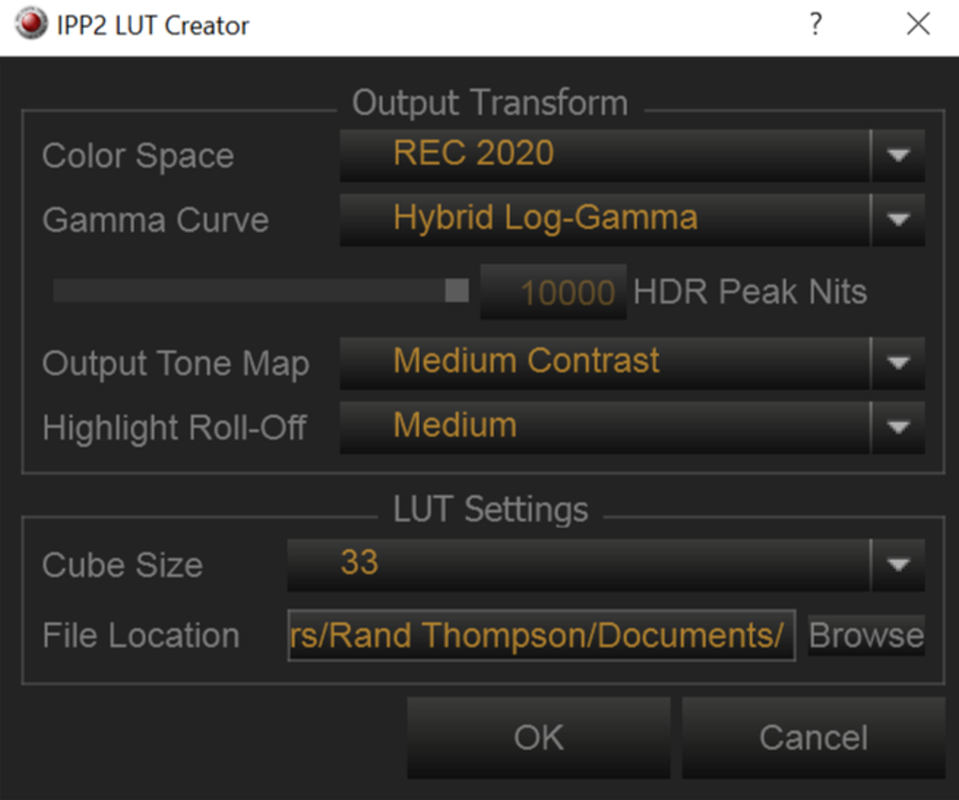

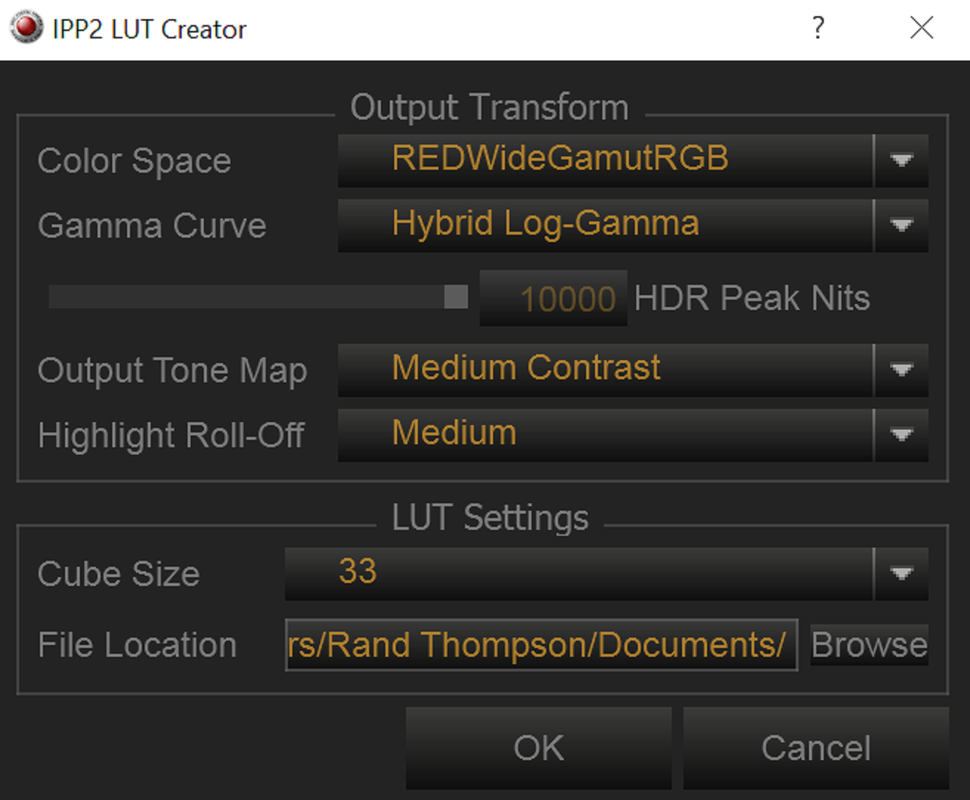

Here's a Node Based Workflow.

OR



[Jon Pais]

Thanks, Rand.



[rand thompson]

Plus I don't know if you've seen this video already or not.



[rand thompson]

Thanks, Rand.

No problem Jon! Let me know if the settings worked or not.



[Jon Pais]

gamma bug doesn’t impact HDR. Thanks so much for your help, Rand.



[rand thompson]

gamma bug doesn’t impact HDR. Thanks so much for your help, Rand.

That's right , I forgot about that. I told you I wasn't too keen on HDR. You're welcome Jon! , I hope the settings helped.



[Jon Pais]

I never was able to figure out what the problem was, so I've begun grading in PQ and delivering in Dolby Vision Profile 8.4. which shows up as HLG on platforms like YT that don't support DV.



[rand thompson]

Thanks for the update Jon!
